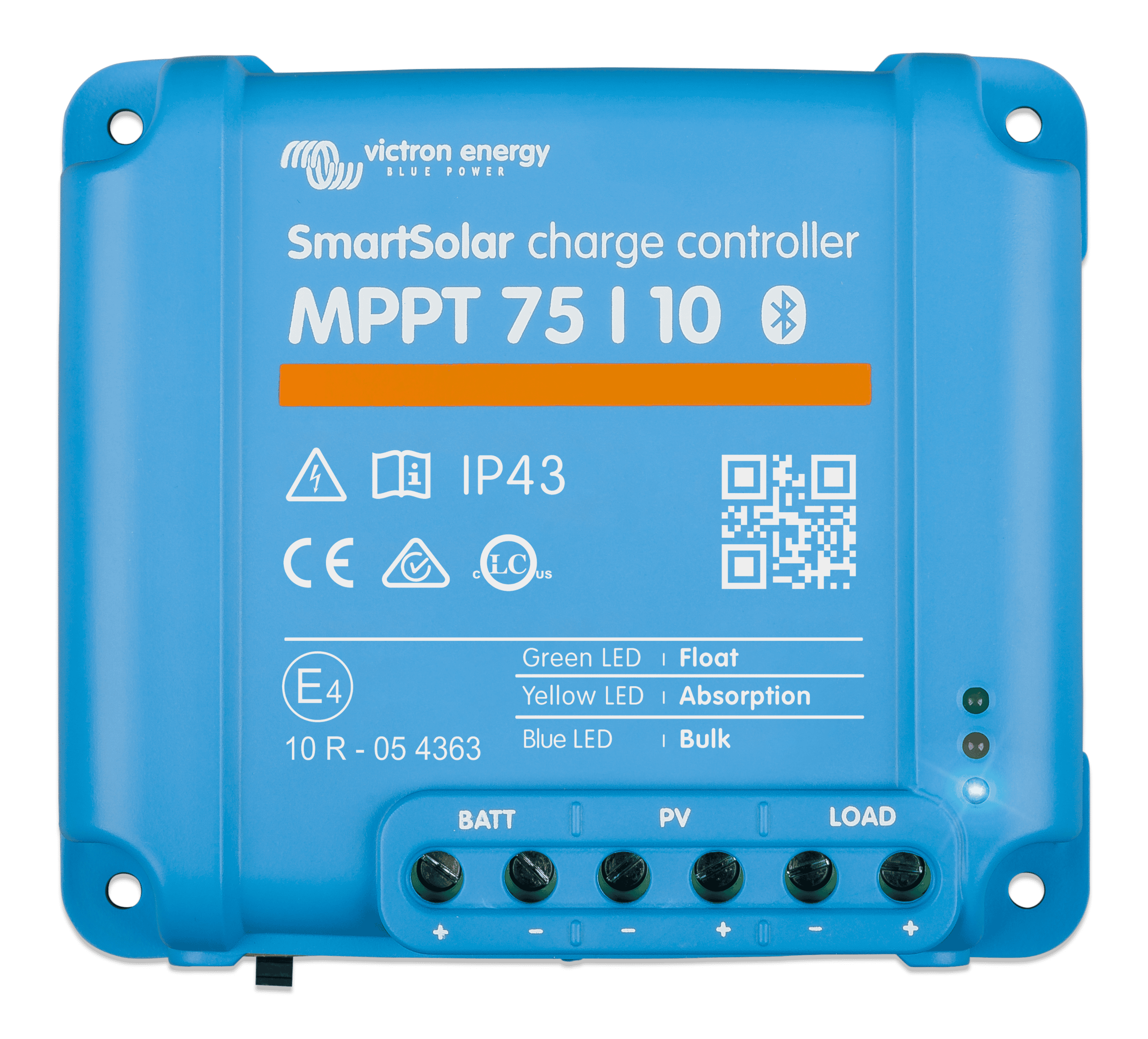

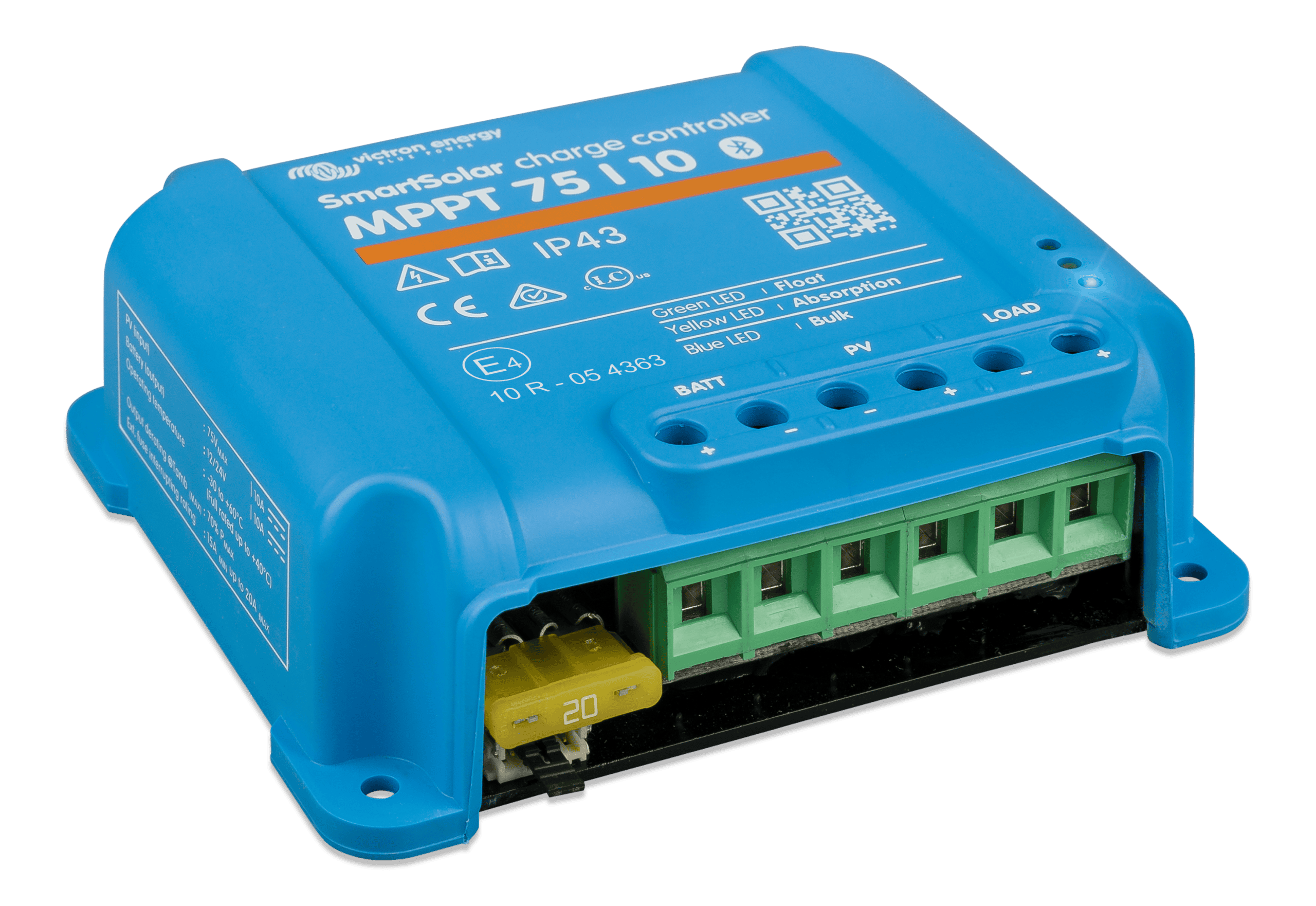

VICTRON MPPT SMARTSOLAR 75/10
$104.95
The SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.
Description
Maximise your energy harvest
The SmartSolar MPPT extracts every bit of energy from the sunlight,
even in partially shaded conditions.
Extremely fast power point tracking and intelligent charge algorithms make it happen.
Synchronise to behave as one
Multiple MPPTs can coordinate, using Bluetooth or a GX communication centre connected to the VE.Can port.
This allows them to switch through charge stages simultaneously, extending battery life and ensuring peak system efficiency.
Solar charge the
smart way
with next-level engineering
Intelligent charge algorithm
Get the most out of your solar panels while protecting your batteries with adaptive charging.
The MPPT solar charge controller automatically switches between bulk, absorption, and float stages,
with intelligent algorithms tailored to your battery type.
Works with most battery types
Compatible with lithium, AGM, gel, and flooded batteries,
the MPPT solar charge controller offers automatic voltage selection and a dedicated charging profile for each battery type.
It can even revive fully discharged batteries.
Intelligent load output
The MPPT solar charge controller’s load output terminals let you power devices directly with built-in protection.
Configure the disconnect voltage to prevent excessive battery drain and
the intelligent BatteryLife algorithm automatically adjusts the level to extend battery life.
VE.Direct port
The VE.Direct port connects to a communication centre for access to VRM,
Victron’s remote management portal. Configure settings, check system data, analyse performance,
and actively manage your system from anywhere in the world.
Extends battery life
The SmartSolar MPPT prioritises battery care with built-in SafetyShield+ features, based on decades of battery know-how.
These include temperature-compensated charging, over-temperature protection, and safeguards against PV short-circuits, reverse polarity, and reverse current.
Easy setup & integration
Get started quickly with VictronConnect, our user-friendly smartphone app trusted by millions worldwide.
Extensive battery presets make configuration simple for new or existing systems, while the app gives you control over features like load output settings,
charging profiles, and real-time performance monitoring.
75/10 MPPT Smart Solar Features
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation.
- Ultra-fast Maximum Power Point Tracking (MPPT): Enhances energy harvest especially in variable light conditions.
- Load Output: Prevents over-discharge by disconnecting the load at a pre-set voltage.
- Battery Life Algorithm: Ensures the battery is nearly fully recharged about once every week.
- Programmable Battery Charge Algorithm: Customizable for specific battery requirements.
- Day/Night Timing and Light Dimming Option: Available for specific applications.
- Internal Temperature Sensor: Adjusts charge voltage based on temperature.
75/10 MPPT Smart Solar SPECIFICATIONS
- Battery Voltage (Auto Select): 12/24 V
- Rated Charge Current: 10 A
- Nominal PV Power, 12 V: 145 W
- Nominal PV Power, 24 V: 290 W
- Max. PV Open Circuit Voltage: 75 V
- Peak Efficiency: 98%
- Charge Voltage ‘Absorption’: 14.4 V / 28.8 V (adjustable)
- Charge Voltage ‘Float’: 13.8 V / 27.6 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C
- Max. Continuous Load Current: 10 A
- Operating Temperature: -30 to +60 °C (full rated output up to 40 °C)
- Dimensions (HxWxD): 100 x 113 x 40 mm
- Weight: 0.5 kg
SHIPPING
- Dimensions (HxWxD): 100 x 113 x 40 mm
- Weight: 0.5 kg
WARRANTY
This product comes with a 5-year warranty.
