Description

LED COMBINATION LAMPS 12/24v 400mm LEAD (PKT 2)

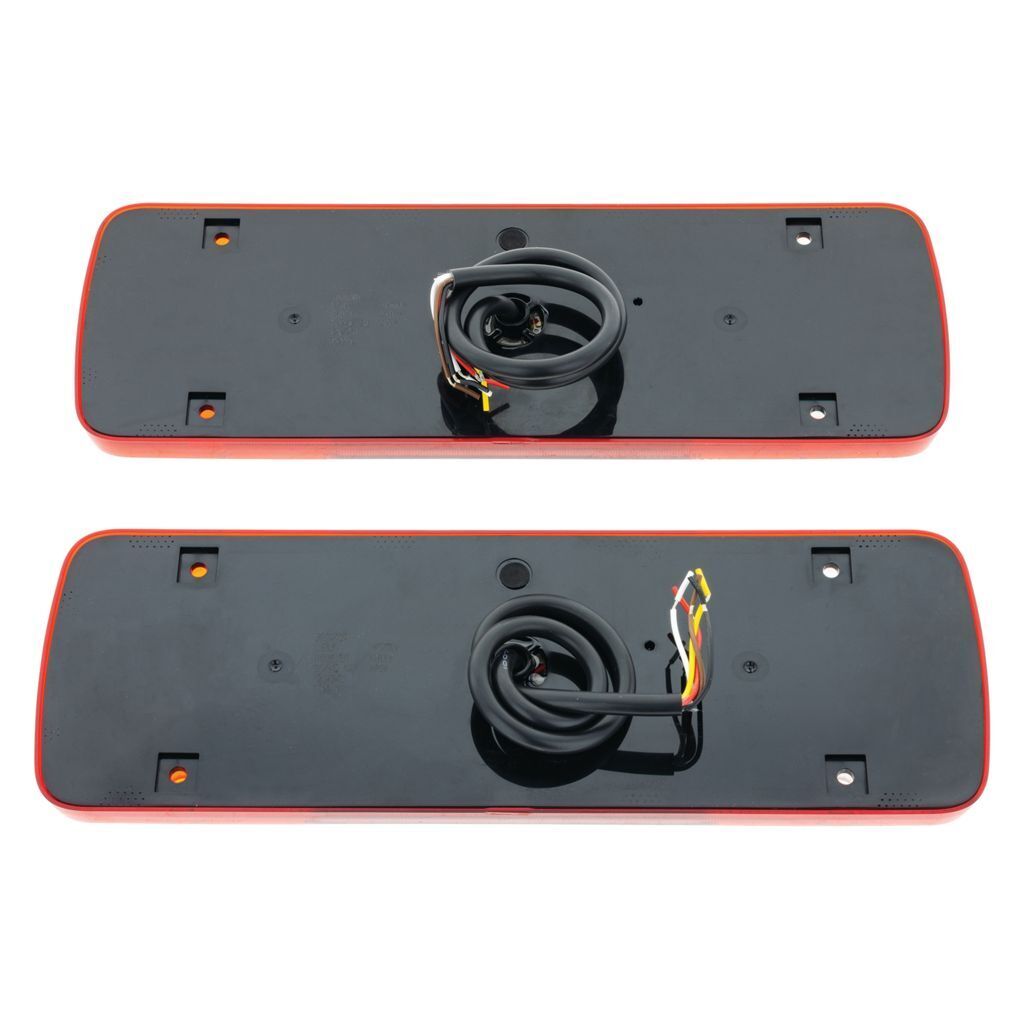

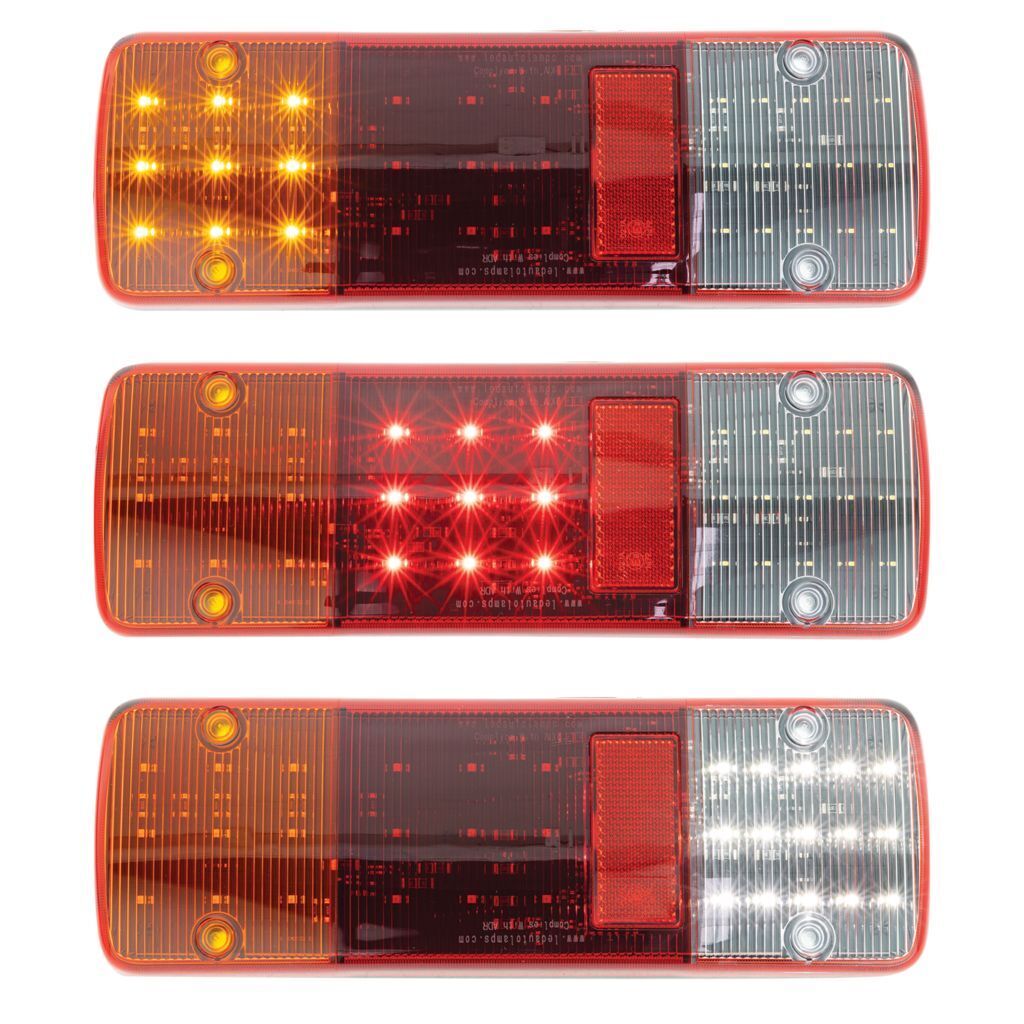

Hulk 4×4 LED Rear Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt

Retrofit replacement unit for Toyota Landcruiser or Hilux Cab Chassis / Trayback vehicles

Features:

• Red, Amber and White Illumination
• Red and Clear PMMA Polycarbonate pattern free lenses with an in-built retro reflector
• 9 x High Intensity Red LED’s in Stop / Tail, 9 x High Intensity Amber SMD LED’s in Indicator Lamp and
• 15 x High Intensity White SMDLED’s in the Reverse Lamp Module
• Black ABS Plastic Housing can be screw mounted through the lens
• Surface Mount, low mounting depth for easy installation
• 400mm Sheathed with 5 wires into Deutsch Plug
• Fully encapsulated circuitry
• Sealed against Dust and Moisture
• 0.16amps at 12 Volt Current Draw for Stop function
• 0.01amps at 12 Volt Current Draw for Tail function
• 0.15amps at 12 Volt Current Draw for Indicator function
• 0.18amps at 12 Volt Current Draw for Reverse function
• 30,000 Hours LED Lifespan
• ADR 49/00 Rear Stop Lamp specifications approved
• ADR 6/00 2A Rear Indicator Lamp specifications approved
• ADR 1/00 Reverse Lamp specifications approved
• ADR 47/00 Reflector specifications approved
• Refer to ADR 13/00 for mounting instructions
• IP67 Rating
• Blister Qty: 2
• 2 Years Warranty

Depth (mm) 22
Height (mm) 105
Mount Surface
Shape Rectangular
Type LED
Voltage 12/24V
Width (mm) 310
