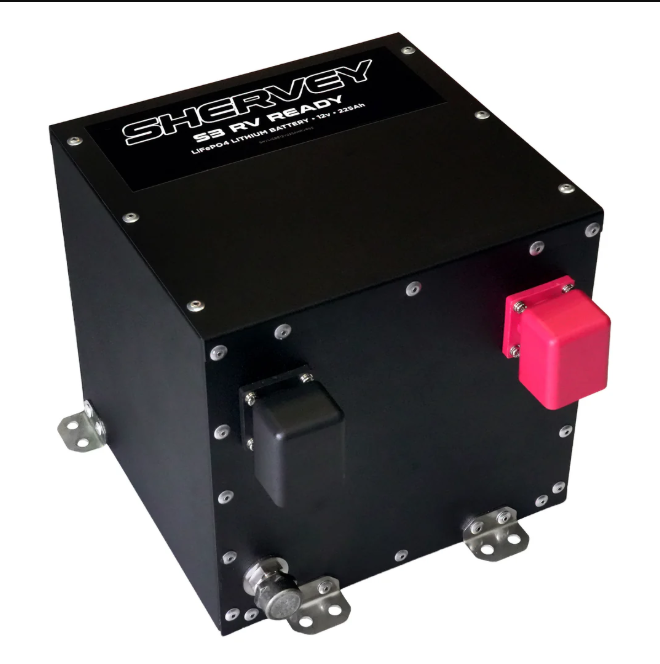

Shervey S3 RVReady LiFePO4 Battery 12V 225AH
$2,110.00
The Shervey S3 RvReady lithium batteries is Shervey’s Newest generation of lithium batteries featuring High Discharge BMS capable of 300A continuous discharge and 200A continuous charge.
The battery BMS has all required safety features like Over-current discharge, over-current charge, and voltage cutoffs.
The S3 RvReady lithium batteries use automotive-grade cells used in this model are designed to withstand 3000 cycles at 80% depth of discharge under heavy electric vehicle use
Description
LiFePO4 12.8v Suitable for “12v” systems
- BMS continuous discharge: 300A
- BMS discharge over current protection: 320A for 10 seconds, reset 35 seconds.
- BMS charge over current protection: 205A for 10 seconds, reset 35 seconds.
- Low voltage discharge shut down: 10v restart 10.5v
- High Voltage charge disconnect: 15v restart 14.8v
- Low temp charge disconnect: 1c reset 2c
- Low temp discharge disconnect -20c reset -15c
- High temp charge disconnect: 55c reset 50c
- High temp discharge disconnect: 60c reset 55c
Charging
- Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)
- Absorption: 14.2V – 14.6V (ideal: 14.4V)
- Float: 13.4V – 13.6V (ideal: 13.5V)
Terminal size: M10
Vent outlet thread: 1/2 inch male BSP thread
Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant
Weight 24.35kgs
The automotive-grade cells used in this model are designed to withstand 3000 cycles at 80% depth of discharge under heavy electric vehicle use.
For instance, cycling the battery daily—bringing it down to 20% state of charge and fully recharging it—would take approximately 8.2 years to complete 3000 cycles before the battery is regarded as end of life, degrading to 80% of its original capacity while remaining operational for some time thereafter.
In less demanding applications such as caravan storage, you can expect longer cycle life.
