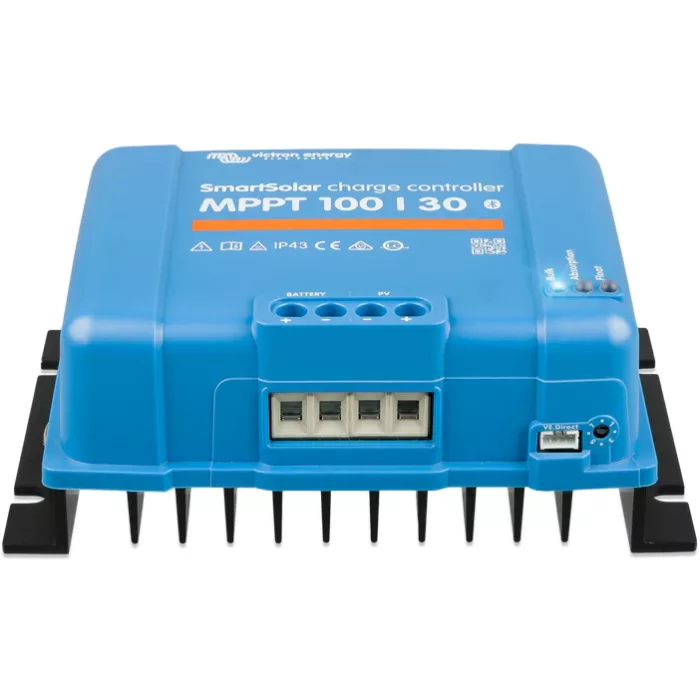

VICTRON MPPT SMARTSOLAR 100/30

VICTRON MPPT SMARTSOLAR 100/30

$219.95

The Smart solar MPPT 100/30 is a highly efficient solar charge controller from Victron Energy. It comes with built-in Bluetooth Smart, allowing for easy setup, monitoring, updating, and synchronization. The device employs ultra-fast Maximum Power Point Tracking (MPPT) to enhance energy harvest, especially during cloudy days with fluctuating light intensity. The controller’s advanced MPPT detection ensures optimal energy harvest even in partial shading conditions. With a maximum efficiency exceeding 98% and no need for a cooling fan, this device is designed for optimal performance.

Be the first to leave a review.
×

Quick Quote

Categories: Tags: , , , ,
Victron Energy

Description

Maximise your energy harvest

The SmartSolar MPPT extracts every bit of energy from the sunlight,

even in partially shaded conditions.

Extremely fast power point tracking and intelligent charge algorithms make it happen.

Synchronise to behave as one

Multiple MPPTs can coordinate, using Bluetooth or a GX communication centre connected to the VE.Can port.

This allows them to switch through charge stages simultaneously, extending battery life and ensuring peak system efficiency.

Solar charge the
smart way
with next-level engineering

Intelligent charge algorithm

Get the most out of your solar panels while protecting your batteries with adaptive charging.

The MPPT solar charge controller automatically switches between bulk, absorption, and float stages,

with intelligent algorithms tailored to your battery type.



Works with most battery types

Compatible with lithium, AGM, gel, and flooded batteries,

the MPPT solar charge controller offers automatic voltage selection and a dedicated charging profile for each battery type.

It can even revive fully discharged batteries.



Intelligent load output

The MPPT solar charge controller’s load output terminals let you power devices directly with built-in protection.

Configure the disconnect voltage to prevent excessive battery drain and

the intelligent BatteryLife algorithm automatically adjusts the level to extend battery life.



VE.Direct port

The VE.Direct port connects to a communication centre for access to VRM,

Victron’s remote management portal. Configure settings, check system data, analyse performance,

and actively manage your system from anywhere in the world.

Extends battery life

The SmartSolar MPPT prioritises battery care with built-in SafetyShield+ features, based on decades of battery know-how.

These include temperature-compensated charging, over-temperature protection, and safeguards against PV short-circuits, reverse polarity, and reverse current.

Easy setup & integration

Get started quickly with VictronConnect, our user-friendly smartphone app trusted by millions worldwide.

Extensive battery presets make configuration simple for new or existing systems, while the app gives you control over features like load output settings,

charging profiles, and real-time performance monitoring.

  • Battery Voltage: 12/24 V Auto Select
  • Rated Charge Current: 30 A
  • Nominal PV Power (12V): 440 W
  • Nominal PV Power (24V): 880 W
  • Maximum PV Open Circuit Voltage: 100 V
  • Max. PV Short Circuit Current: 35 A
  • Maximum Efficiency: 98%
  • Self-consumption: 12 V: 30 mA, 24 V: 20 mA
  • Charge Voltage ‘Absorption’: Default setting: 14.4 V / 28.8 V (adjustable)
  • Charge Voltage ‘Float’: Default setting: 13.8 V / 27.6 V (adjustable)
  • Charge Algorithm: Multi-stage adaptive
  • Temperature Compensation: -16 mV / °C resp. -32 mV / °C
SHIPPING
  • Weight: 1.3 kg
  • Dimensions: 130 x 186 x 70 mm
WARRANTY

This product comes with a 5-year warranty.
