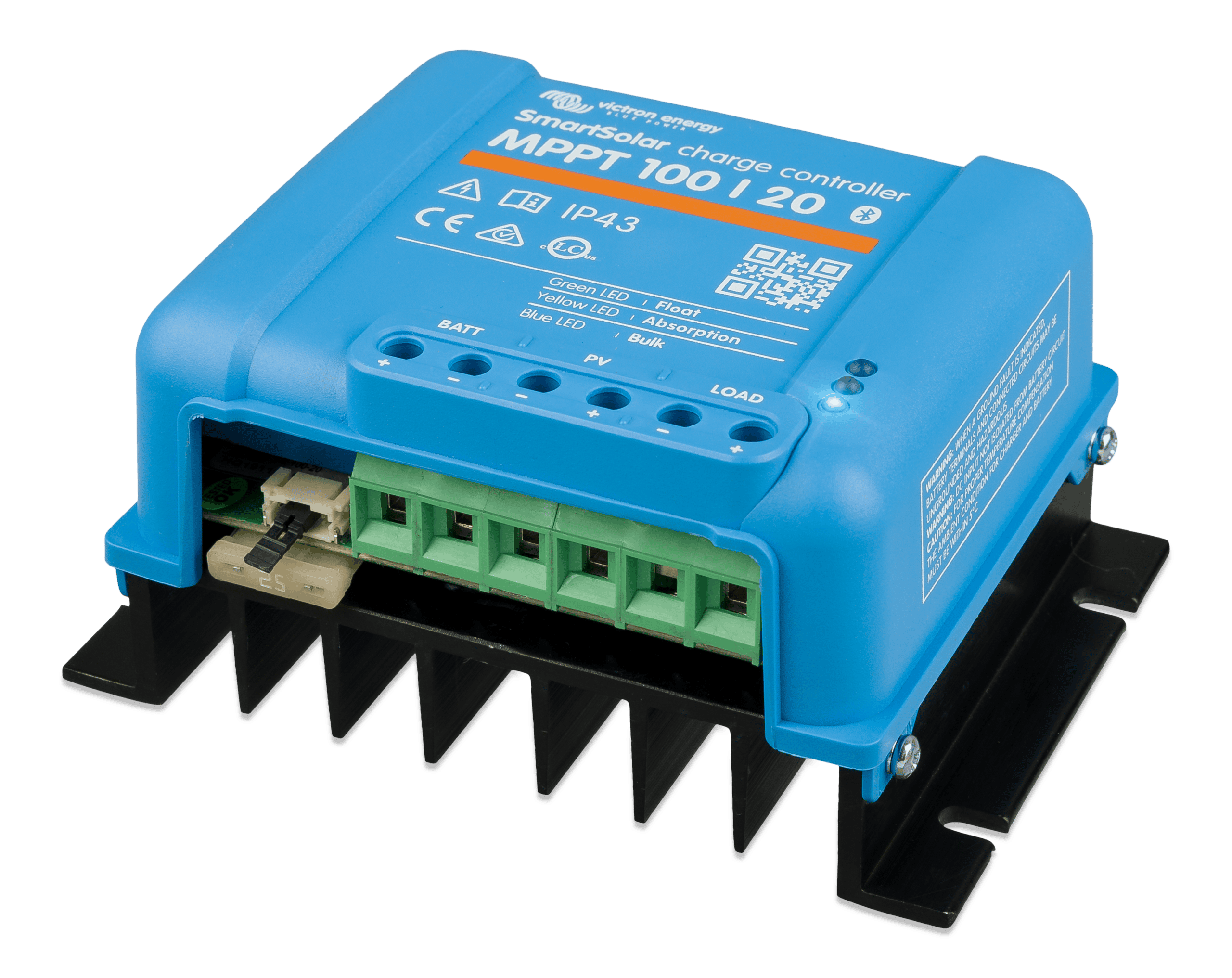

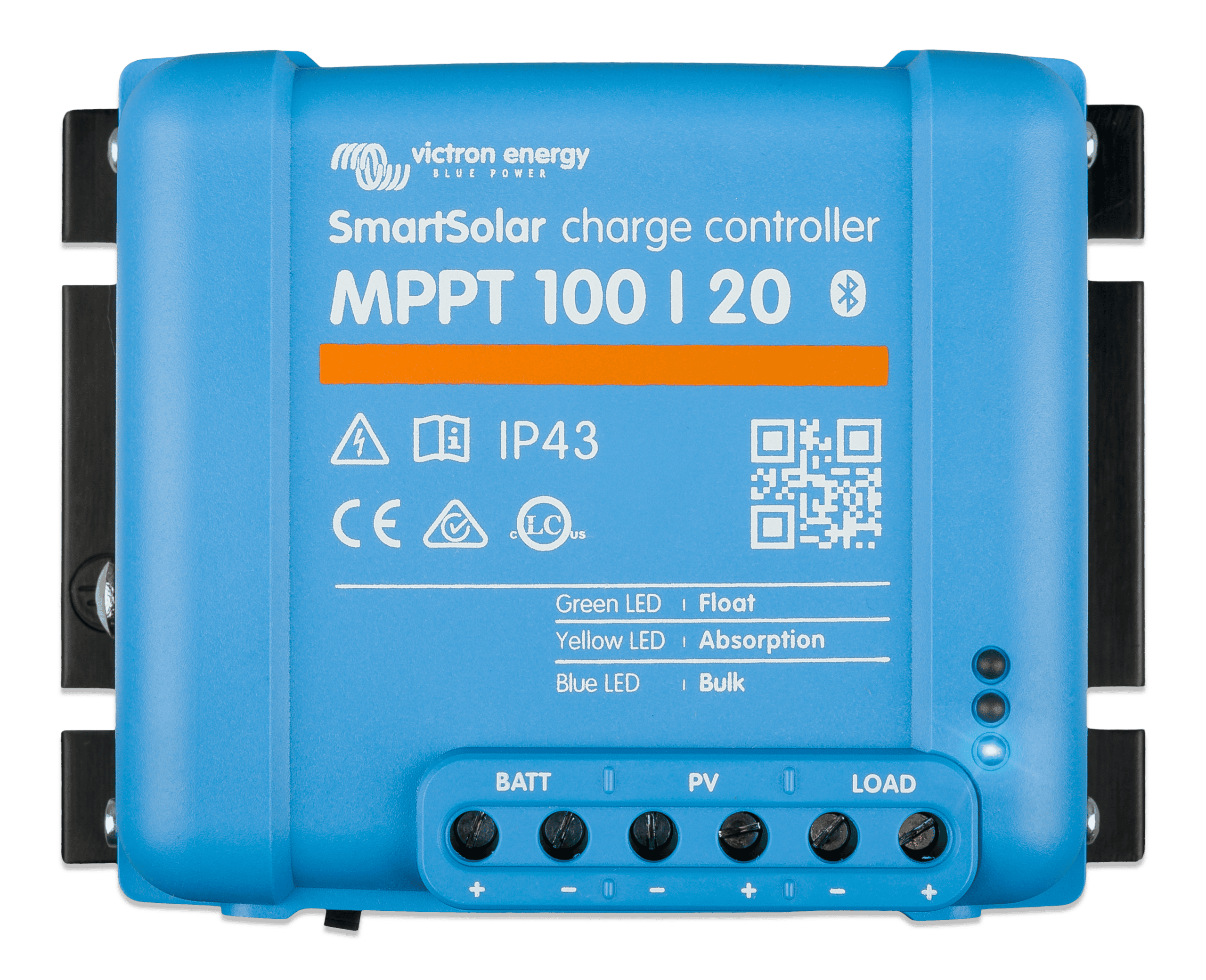

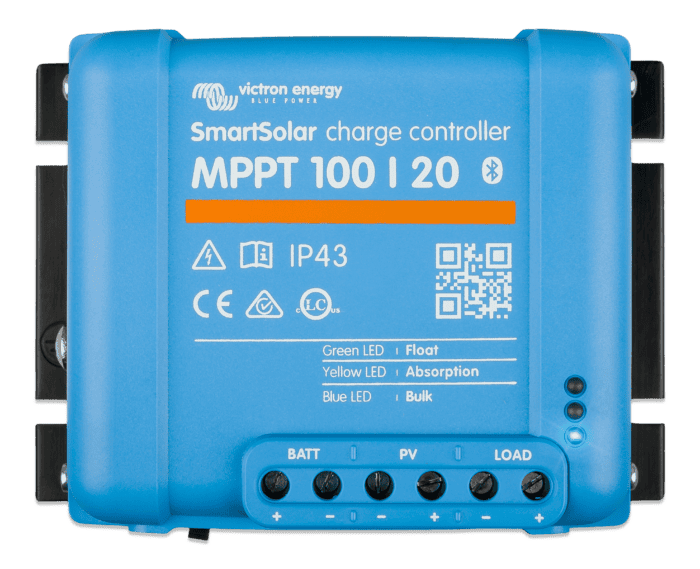

VICTRON MPPT SMARTSOLAR 100/20
$149.95
The Victron SmartSolar MPPT 100/20 (up to 48V) is a highly efficient solar charge controller from Victron Energy. It incorporates the latest and fastest technology to ensure that you get the most out of your solar panels. With built-in Bluetooth Smart, it offers wireless communication to set-up, monitor, update, and synchronize the SmartSolar Charge Controllers.
Description
Victron SmartSolar MPPT 100/20 Features
- Bluetooth Smart Built-in: Offers wireless solutions for setup, monitoring, updates, and synchronization.
- Ultra-fast Maximum Power Point Tracking (MPPT): Especially beneficial during cloudy skies with changing light intensity. It can improve energy harvest by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
- Load Output: Prevents over-discharge of the battery by connecting all loads to the load output. The load output disconnects the load when the battery has been discharged to a pre-set voltage.
- Battery Life Algorithm: Monitors the state of charge of the battery and adjusts the load disconnect level to ensure the battery is nearly 100% recharged at least once every week.
- Programmable Battery Charge Algorithm: Offers flexibility in setting up the charging parameters.
- Internal Temperature Sensor: Compensates the absorption and float charge voltage based on temperature.
Victron SmartSolar MPPT 100/20 SPECIFICATIONS
- Battery Voltage (Auto Select): 12/24/48 V
- Rated Charge Current: 20 A
- Nominal PV Power, 12 V: 290 W
- Nominal PV Power, 24 V: 580 W
- Nominal PV Power, 48 V: 1160 W
- Max. PV Short Circuit Current: 20 A
- Max. PV Open Circuit Voltage: 100 V
- Charge Voltage ‘Absorption’: 14.4 V / 28.8 V / 57.6 V (adjustable)
- Charge Voltage ‘Float’: 13.8 V / 27.6 V / 55.2 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C resp. -32 mV / °C
- Max. Continuous Load Current: 20 A
- Low Voltage Load Disconnect: 11.1 V / 22.2 V / 44.4 V or Battery Life algorithm
- Low Voltage Load Reconnect: 13.1 V / 26.2 V / 52.4 V or Battery Life algorithm
- Operating Temperature: -30 to +60 °C (full rated output up to 40 °C)
- Data Communication Port: VE.Direct
SHIPPING
- Weight: 0.65 kg
- Dimensions: 100 x 131 x 60 mm
WARRANTY
This product comes with a 5-year warranty.
