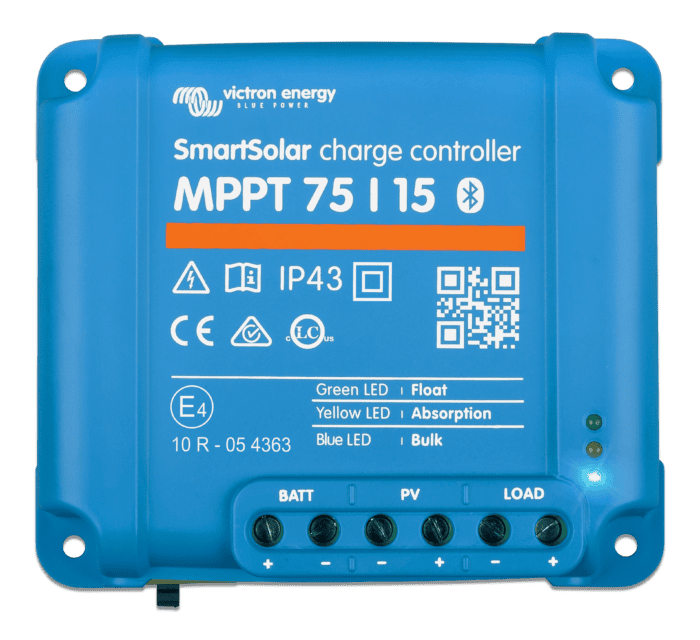

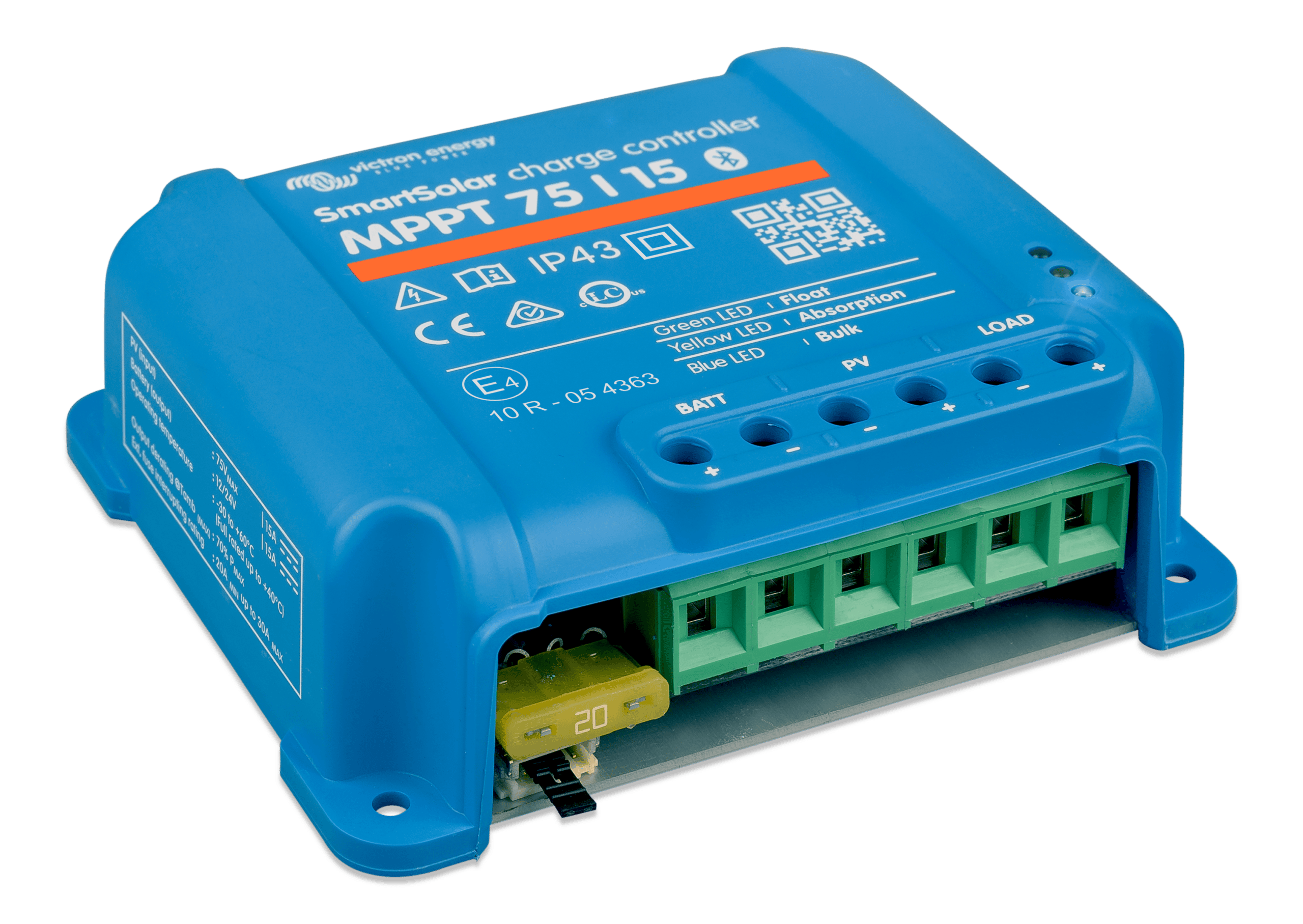

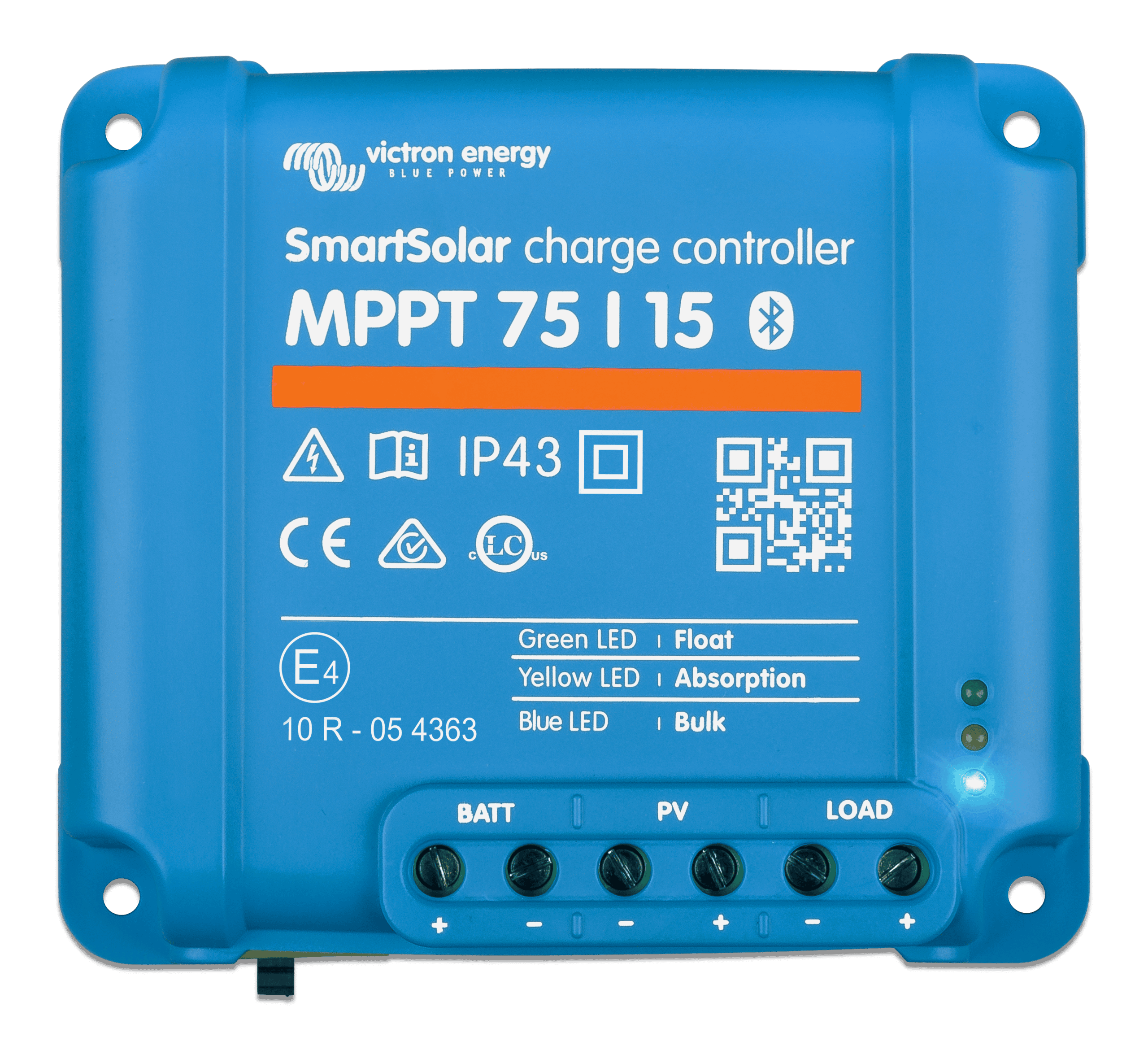

VICTRON MPPT SMARTSOLAR 75/15
$114.95
The SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.
Description
Maximise your energy harvest
The SmartSolar MPPT extracts every bit of energy from the sunlight,
even in partially shaded conditions.
Extremely fast power point tracking and intelligent charge algorithms make it happen.
Synchronise to behave as one
Multiple MPPTs can coordinate, using Bluetooth or a GX communication centre connected to the VE.Can port.
This allows them to switch through charge stages simultaneously, extending battery life and ensuring peak system efficiency.
Solar charge the
smart way
with next-level engineering
Intelligent charge algorithm
Get the most out of your solar panels while protecting your batteries with adaptive charging.
The MPPT solar charge controller automatically switches between bulk, absorption, and float stages,
with intelligent algorithms tailored to your battery type.
Works with most battery types
Compatible with lithium, AGM, gel, and flooded batteries,
the MPPT solar charge controller offers automatic voltage selection and a dedicated charging profile for each battery type.
It can even revive fully discharged batteries.
Intelligent load output

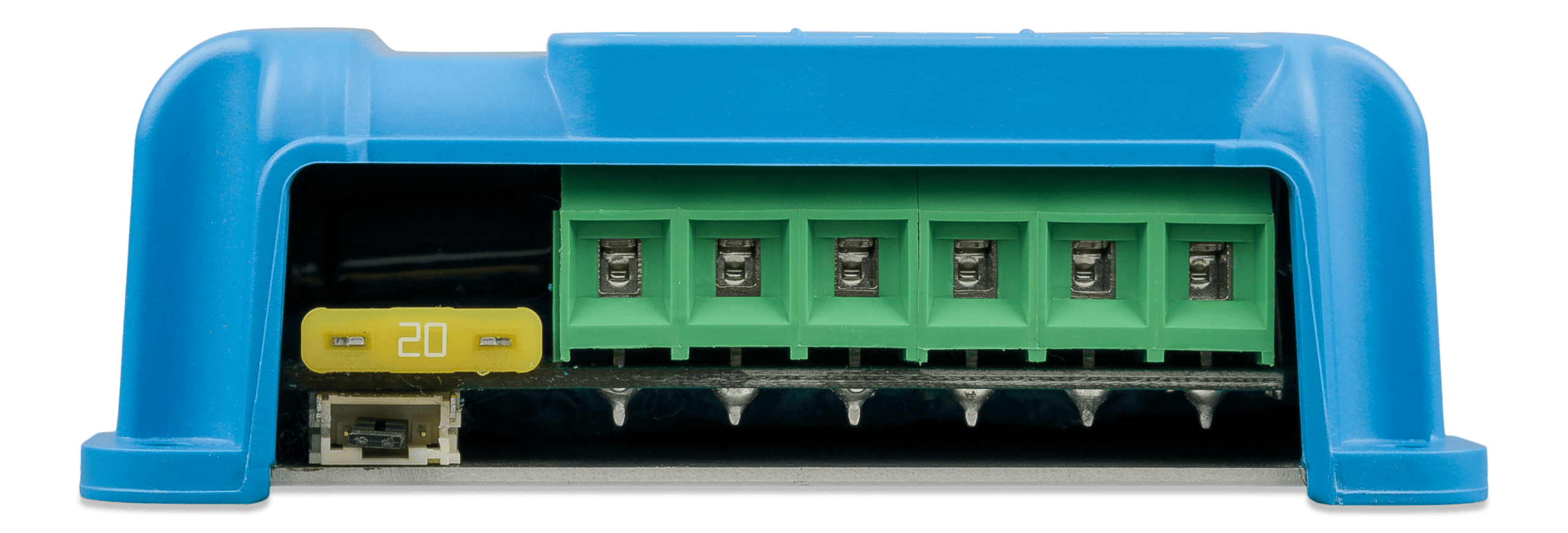

The MPPT solar charge controller’s load output terminals let you power devices directly with built-in protection.
Configure the disconnect voltage to prevent excessive battery drain and
the intelligent BatteryLife algorithm automatically adjusts the level to extend battery life.
VE.Direct port
The VE.Direct port connects to a communication centre for access to VRM,
Victron’s remote management portal. Configure settings, check system data, analyse performance,
and actively manage your system from anywhere in the world.
Extends battery life
The SmartSolar MPPT prioritises battery care with built-in SafetyShield+ features, based on decades of battery know-how.
These include temperature-compensated charging, over-temperature protection, and safeguards against PV short-circuits, reverse polarity, and reverse current.
Easy setup & integration
Get started quickly with VictronConnect, our user-friendly smartphone app trusted by millions worldwide.
Extensive battery presets make configuration simple for new or existing systems, while the app gives you control over features like load output settings,
charging profiles, and real-time performance monitoring.
Victron SmartSolar MPPT 75/15 Features
- Bluetooth Smart Built-in: Offers a wireless solution to set-up, monitor, update, and synchronize SmartSolar Charge Controllers.
- Ultra-fast Maximum Power Point Tracking (MPPT): Especially beneficial in a clouded sky, where light intensity changes continuously. This ultra-fast MPPT controller can improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Load Output: Prevents over-discharge of the battery by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
- Battery Life: Intelligent battery management ensures the battery is nearly fully recharged about once every week.
- Programmable Battery Charge Algorithm: Offers flexibility in charging.
- Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.
Victron SmartSolar MPPT 75/15 SPECIFICATIONS
- Battery Voltage (Auto Select): 12/24 V
- Rated Charge Current: 15 A
- Max. PV Open Circuit Voltage: 75 V
- Nominal PV Power, 12 V: 145 W
- Nominal PV Power, 24 V: 290 W
- Peak Efficiency: 98%
- Charge Voltage ‘Absorption’: 14.4 V / 28.8 V (adjustable)
- Charge Voltage ‘Float’: 13.8 V / 27.6 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C
- Max. Continuous Load Current: 15 A
- Low Voltage Load Disconnect: 11.1 V / 22.2 V or Battery Life algorithm
- Low Voltage Load Reconnect: 13.1 V / 26.2 V or Battery Life algorithm
- Operating Temperature: -30 to +60 °C (full rated output up to 40 °C)
- Data Communication Port: VE.Direct
- Weight: 0.6 kg
- Dimensions (HxWxD): 100 x 113 x 50 mm
SHIPPING
- Weight: 0.6 kg
- Dimensions (HxWxD): 100 x 113 x 50 mm
WARRANTY
This product comes with a 5-year warranty.
